mBlade V1 Light Suit
First version in 2014 using Costco 12V LEDs.
Controlled via IR remote hidden in the paw.
|
|

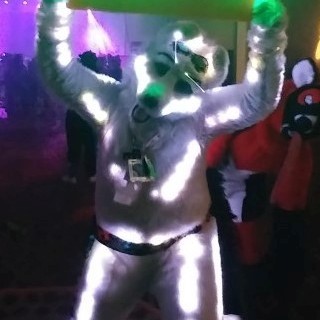

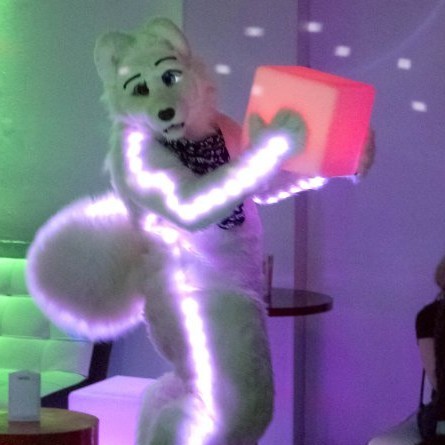

mBlade V2 Light Suit
Second and current version built in 2015 using WS2812b LEDs.
Controlled by a Teensy 3.2 and buttons in the paws.
|
|
DaftPunk Helmets
Commissioned in 2017. These helmets were given to me, painted by the commissioner. I fit and finished them
and installed and programmed the LEDs. APA102 2020 LEDs used for the fiber hair in Guy Manuel, and visor in Tommas.
All other LEDs are WS2812b driven by a Teensy 3.2 and powered by a USB power bank. It has FFT processing for music reaction
and a button to switch modes in the helmets.
|
|
Fureh Paws Vegas Sign
This is a big indoor only sign for a local convention, Fureh built by BCBreakaway. Its pretty basic, uses a Robodyn Nano v3 with a USB power bank.
No mode selection, just animates when powered. One unique note to this build is this was my first time 'crimping' a solid LED
strip to make it bend around an arc.
|
|
Gem Raptor
This suit was a collab effort between Made2Glow and DandyLions LLC. They built the suit as far as they could, send to us, and we
instal LEDs and program. This suit has 533 LEDs, mostly WS2812b, some PL9823 for the feathers. Driven by a Teensy 3.2 and powered by Lifepo4 batteries.
Button control in the arm and gem.
|
|

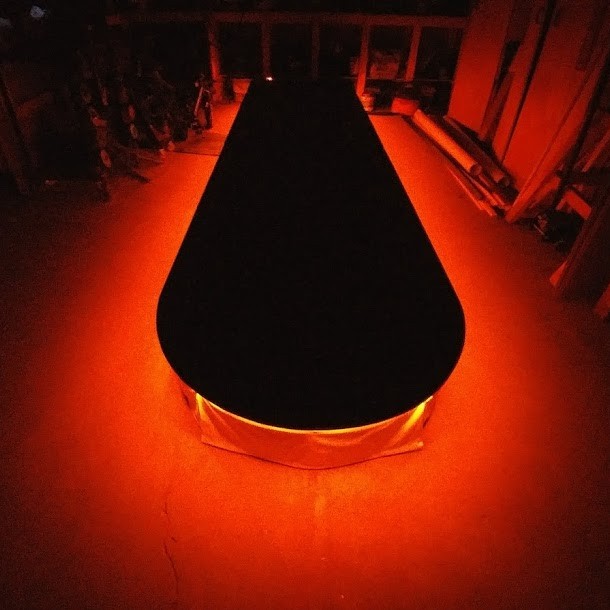

LED CatWalk
This project was for a local fashion show in 2016. Uses a RoboDyn Nano v3 and about 300 WS2812b LEDs.
|
|
LED Cloak
Commissioned by Alexi. 100% built by Made2Glow. Has 300 WS2812b 144/m LEDs driven by a Teensy 3.2 powered by Lifepo4.
|
|

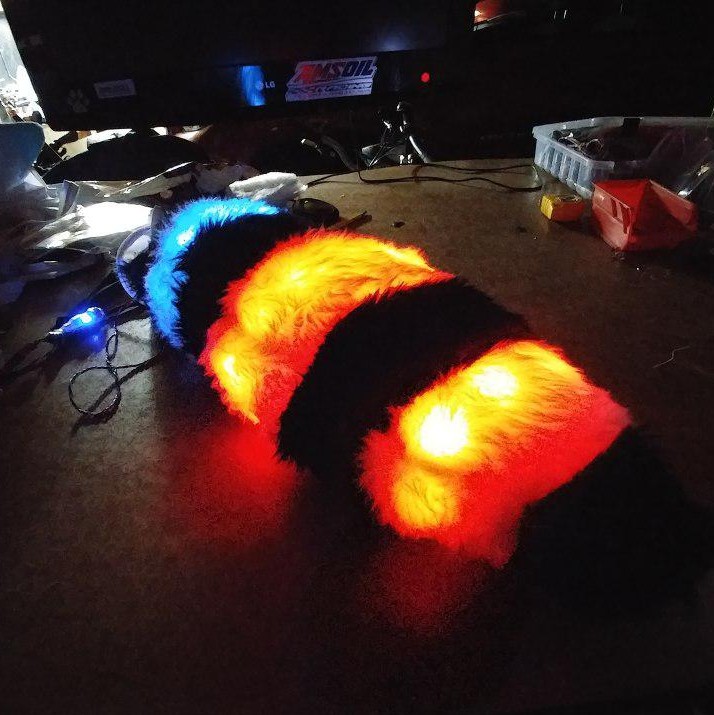

LED Coon Tail
Commissioned by SubbyCoon. 100% built by Made2Glow. 36 WS2812b LEDs powered by a USB power bank.
|
|
LED Death Ball
This was intended for a off camera light source on a movie set. It was an expirement on how fast I could put together
a prop. Unfortunatly 'and suprisingly' it was not bright enough for the task. 512 APA102 LEDs with 40 amps of 5v available.
|
|

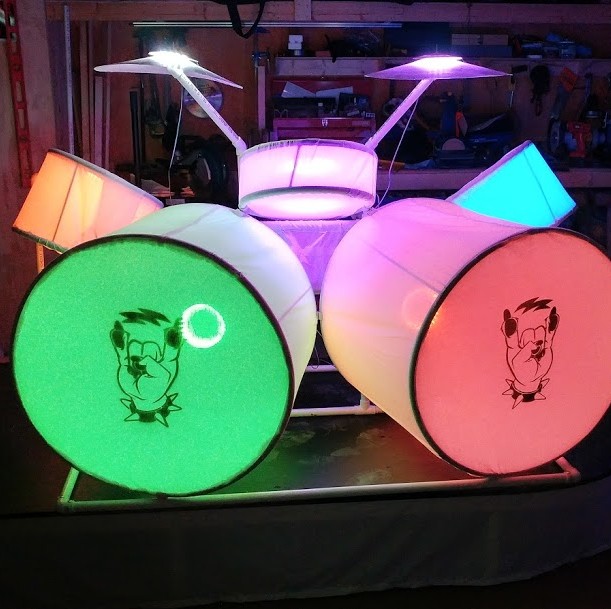

LED Drum Set
100% built by Made2Glow, this set is intended for a cosplay rock band. Has 288 WS2812b LEDs driven by a Teensy 3.2. Currently it
is controlled via usb on custom software that Alexi wrote, but soon to be upgraded to ArtNet.
|
|
LED Guitar
Guitar desgined by Alexi and constructed by Made2Glow. This beast has 501 WS2812b LEDs driven by a Teensy 3.2 powered by 18650 Lipos.
This was made as a stand alone cosplay, or used in the LED rock band cosplay. It too will be upgraded to ArtNet in the future.
|
|
LED Lightning Back Panel
This was a refurbish job for a fursuit LED accent. It used to have 12V white LED strips that fatigured and failed. Now it has reinforced WS2812b
LEDs driven by a Teensy 3.2 with audio reaction.
|
|

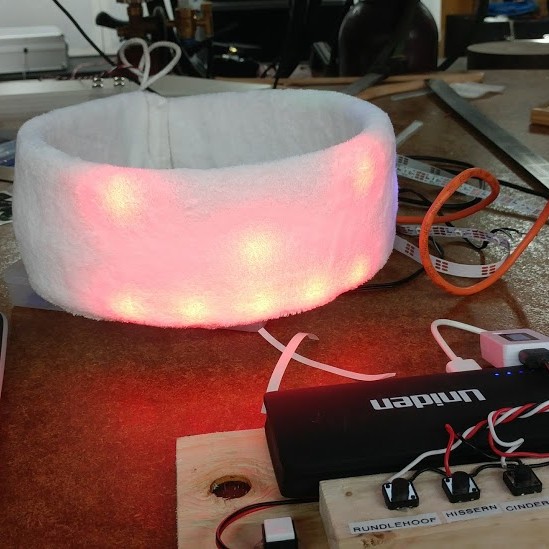

LED Sorting Collar
For Fureh 2017 Theme, Harry Otter. This collar was construted for the opening ceremonies. A voice actor behind stage would speak for the
collar and press a button to select which house they will end up in.
|
|

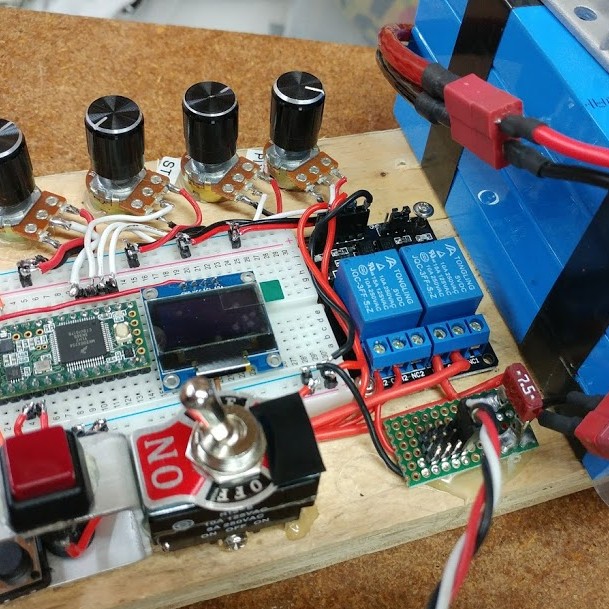

LED Test Bed
This is used to test WS2812b and SPI type LEDs. I has 2 relays to shut off the data and 5v lines so the LED strip can remain connected
while being soldered.
|
|
LED Wall
This project was completed with the help from friends, all LED work by Made2Glow. It measures 16 x 4 feet. Has 24 x 6 pixels.
Two WS2812b LEDs per pixel. It has its own built in animations from the Teensy 3.2. Or can accept ArtNet from stage light software.
|
|
Stage Lighting
Made2Glow is getting into stage lighting and loves to build light fixtures, such as the LED wall, or other LED objects.
|
|
LED Mohawk
A LED Mohawk built for Alexi. It is a replacement for his normal mohawk.
|
